25mm ergonomic rubber handle ratchet buckle fits comfortably in your hand. Unloading your cargo is also smooth and convenient thanks to the rubberized release button.
Size | 1" 25mm |
---|---|
Handle | Rubber coated |
Breaking Load | 800kg/1000kg |
Marking | LC400daN/LC500daN |
Logo | Customized logo acceptable |
A ratchet buckle is a mechanical device used for tightening and securing straps, belts, or other webbing materials. It is commonly employed in various applications, particularly in cargo securing, transportation, and load restraint systems. The ratchet buckle consists of a mechanism that allows for incremental tightening and a locking mechanism to maintain tension.
Ratchet Mechanism: The ratchet mechanism is designed to provide a means of tightening the strap or webbing incrementally. It typically involves a gear and pawl system.
Release Lever: A release lever allows for the quick release of tension when disengaged, enabling efficient and controlled unloading of the secured load.
Base and Frame: The base and frame provide structural support for the ratchet mechanism and are designed to endure the applied tension.

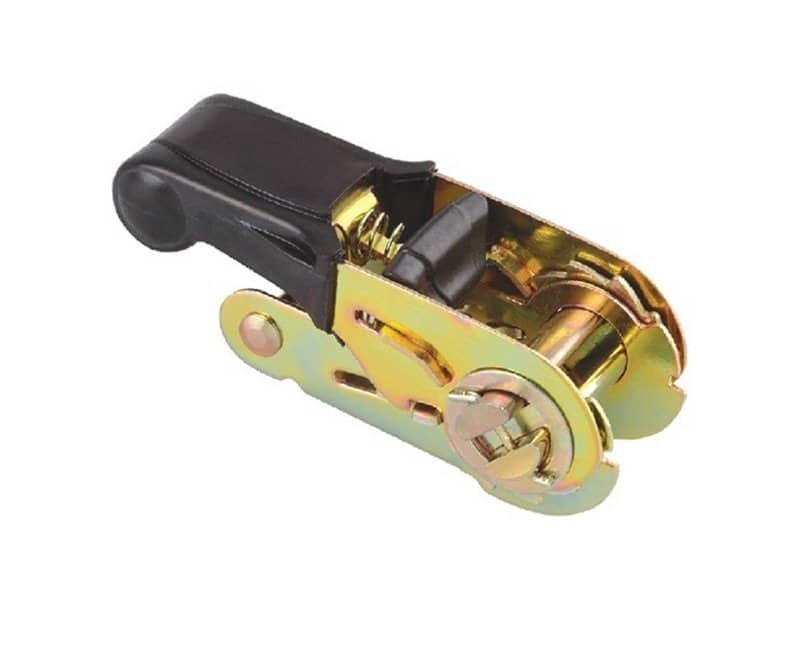

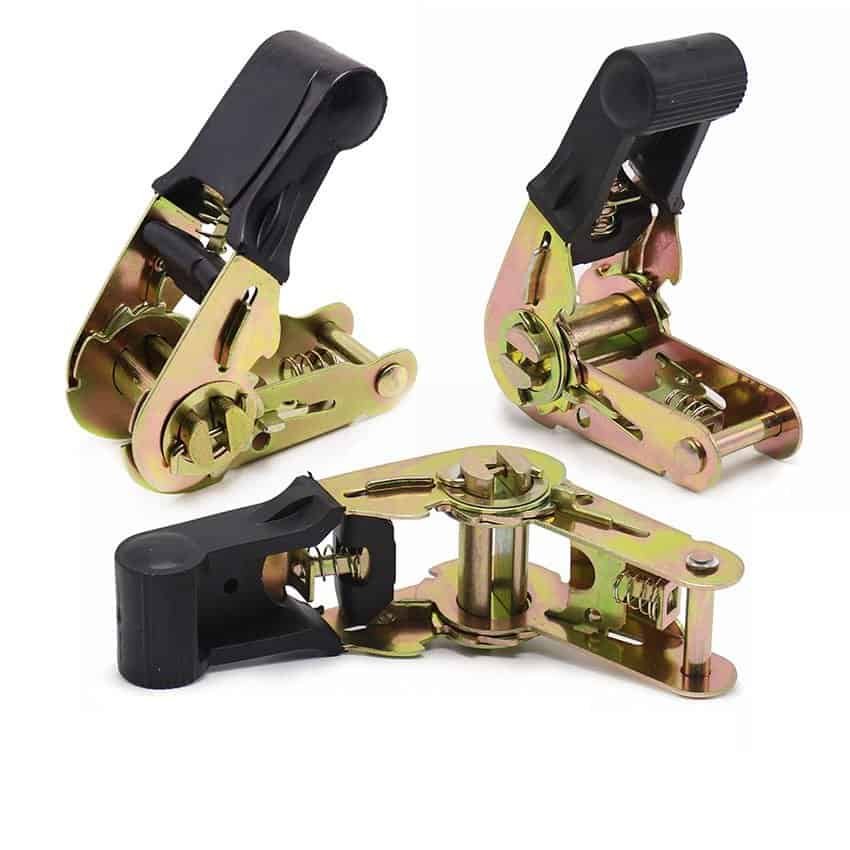

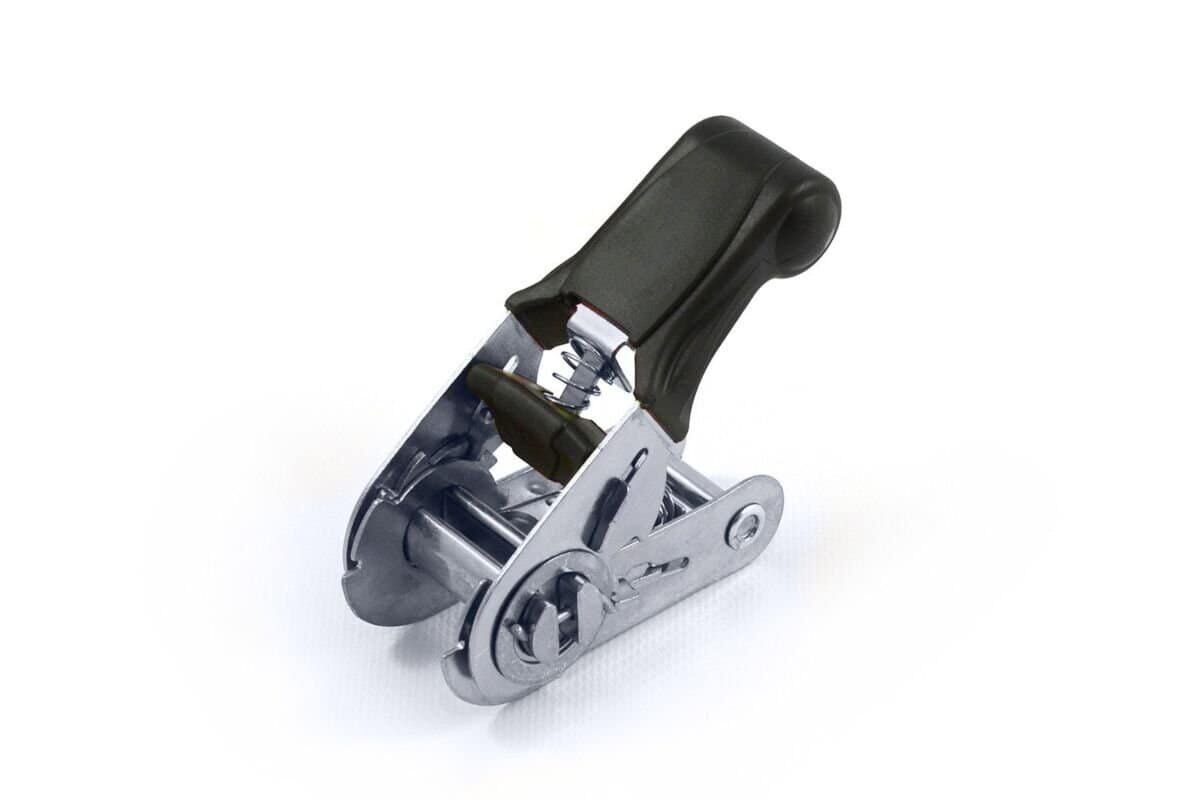

1″ 25mm rubber handle ratchet buckle

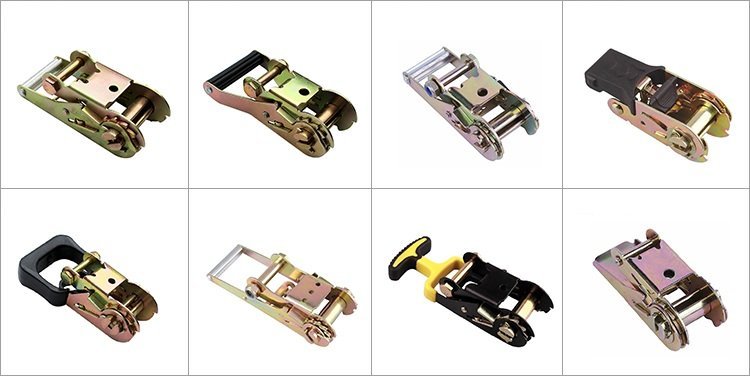

Other ratchet buckle options
Size | Handle Type | Breaking Load | Surface Treatment | ||||||
1″ 25mm | steel | 800kg/1000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
1″ 25mm | rubber coated | 800kg/1000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
1.5″ 35mm | steel | 2000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
1.5″ 35mm | plastic | 3000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
2″ 50mm | steel | 2000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
2″ 50mm | plastic/aluminum | 3000kg/4000kg/5000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
2″ 50mm | rubber coated | 3000kg/4000kg/5000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
3″ 75mm | aluminum | 10000kg | yellow zinc plated/white zinc plated/black finish/stainless steel | ||||||
4″ 100mm | aluminum | 1000kg | yellow zinc plated/white zinc plated/black finish/stainless steel |
