Webbing slings, also known as lifting slings or web slings, are crucial tools in the field of material handling and lifting operations. These flexible and durable slings are constructed from high-quality synthetic polyester fibers, ensuring strength and reliability.
Width | standard width |
---|---|
Length | standard length |
Color | standard colors |
Safety Factor | 5:1,6:1,7:1,8:1 |
Breaking load | WLLXSafety Factor |
Logo | Customized logo acceptable |
Package | Hot Shrink Film |
The design of webbing slings allows for easy and secure attachment to various loads, providing a safe and efficient solution for lifting, rigging, and hoisting applications.
The most popular sling type – Available up to 12T, our standard Flat Slings come in Simplex and Duplex forms and offer solutions to most lifting problems.

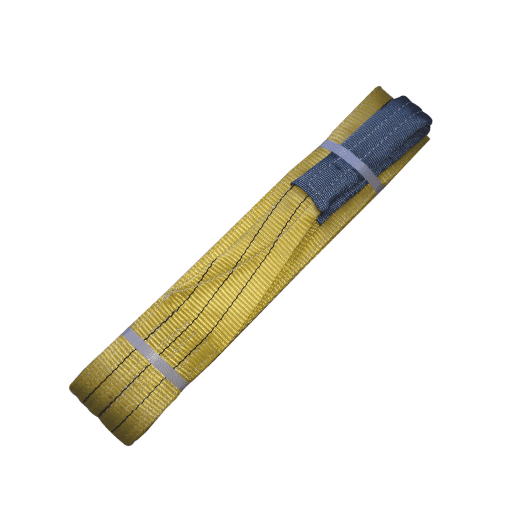

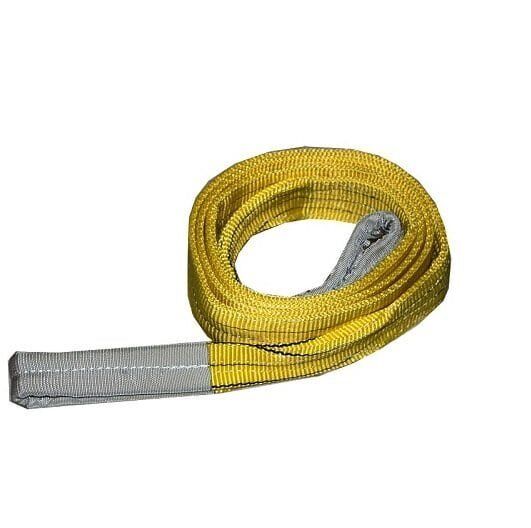

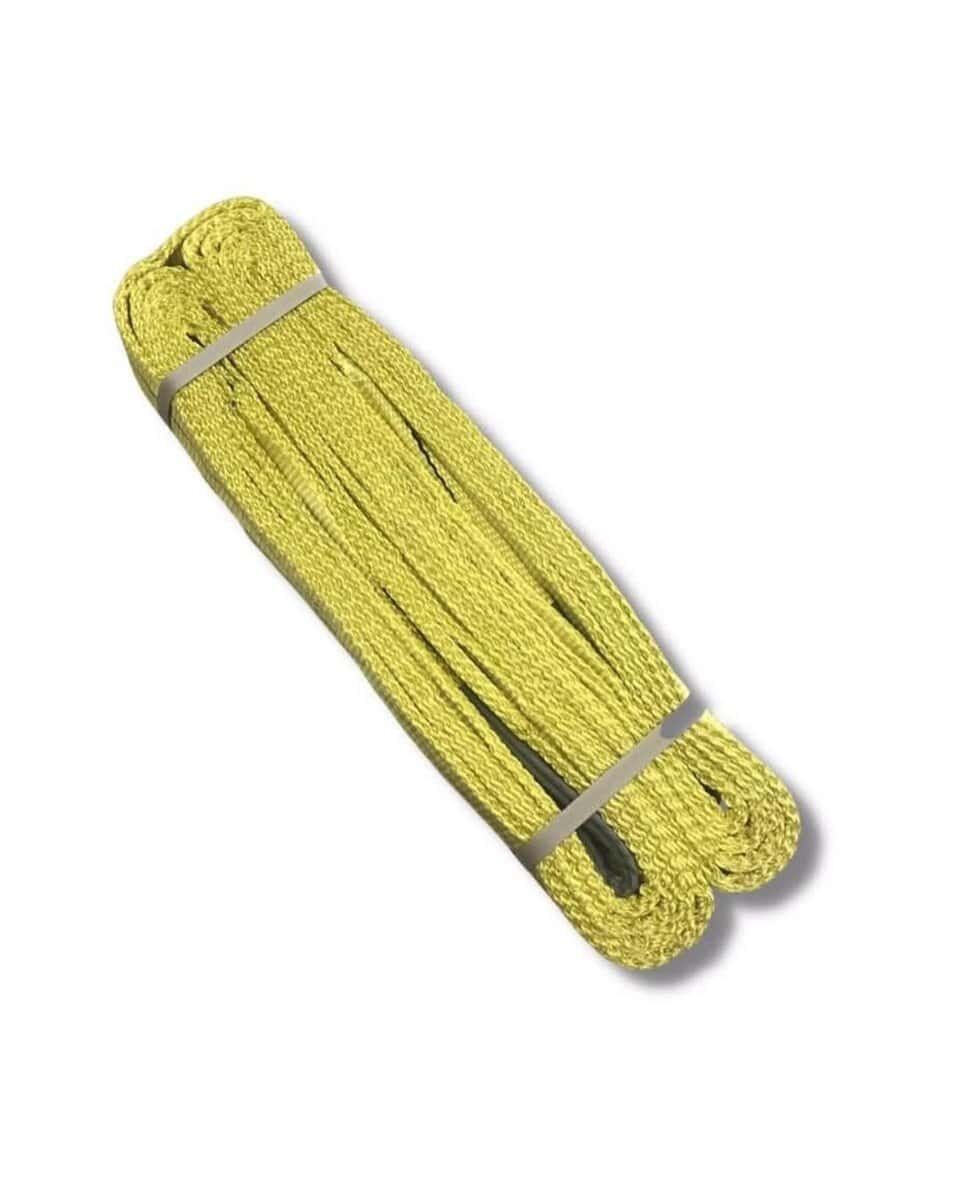

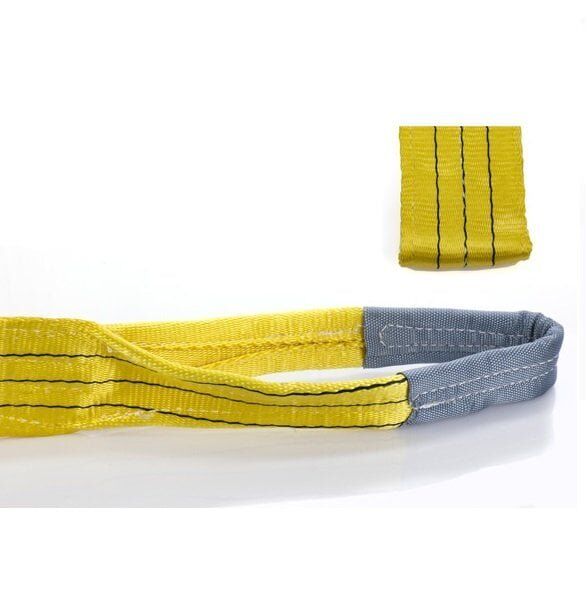

Flat webbing sling with eyes
DUPLEX EYE-EYE WEBBING SLING, EN1492-1 | ||||||||||||
Width of webbing(mm) | COLOR | WLL(kg) | Working Load limit with 1 webbing sling | Working Load limit with 2 webbing sling | ||||||||
Straight lift | Choked lift | β | straight lift up to 45° | choked lift up to 45° | straight lift up to 45°-60° | Choked lift up to 45°-60° | ||||||
0°-7° | 7°-45° | 45°-60° | ||||||||||
1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1.12 | 1 | 0.8 | ||||
25/30/50 | VIOLET | 1,000 | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800 | |
50/60 | GREEN | 2,000 | 2000 | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600 | |
75/90 | YELLOW | 3,000 | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400 | |
100/120 | GREY | 4,000 | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200 | |
125/150 | RED | 5,000 | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000 | |
150/180 | BROWN | 6,000 | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800 | |
200/240 | BLUE | 8,000 | 8000 | 6400 | 16000 | 11200 | 8000 | 11200 | 8960 | 8000 | 6400 | |
250/300 | ORANGE | 10,000 | 10000 | 8000 | 20000 | 14000 | 10000 | 14000 | 11200 | 10000 | 8000 | |
300 | 12,000 | 12000 | 9600 | 24000 | 16800 | 12000 | 16800 | 13440 | 12000 | 9600 |
1. Inspection:
2. Load Identification:
3. Attachment Points:
4. Proper Positioning:
5. Lifting Angles:
6. Avoid Twisting or Knotting:
7. Load Control:
8. Monitoring:
9. Storage:
10. Environmental Considerations: – Be aware of the environmental conditions, such as temperature and chemicals, as these can affect the integrity of the webbing material.
11. Training: – Ensure that personnel involved in using flat webbing slings are properly trained in safe lifting practices, including inspection and usage procedures.
12. Regular Inspection: – Establish a routine inspection program, including pre-use visual inspections and periodic thorough examinations, as recommended by the manufacturer.
13. Manufacturer’s Guidelines: – Follow the specific guidelines provided by the manufacturer for the particular type and model of flat webbing sling being used.
14. Secure Rigging:
