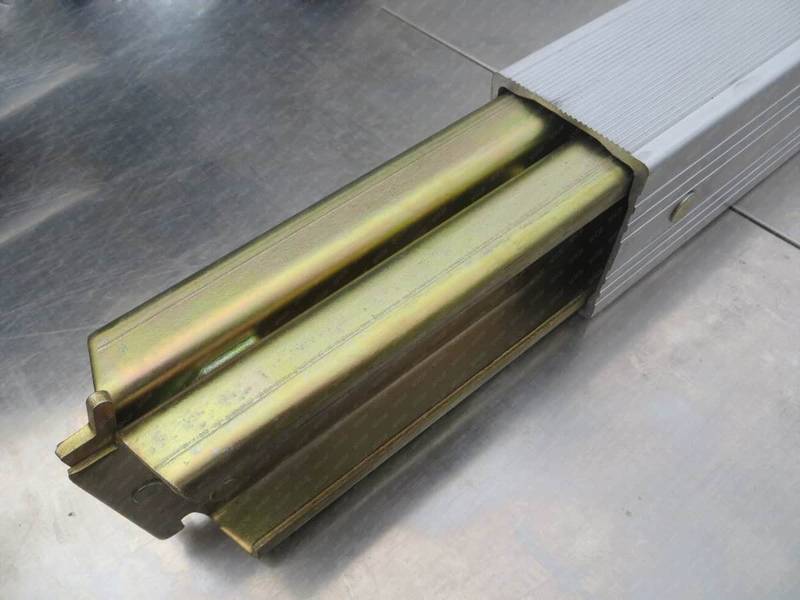

E-track beams work to prevent loads from shifting during transport. They are used for securement applications when hauling heavier or more sensitive cargo that requires heavy-duty beams for security.
| Size | standard size |
|---|---|
| Material | Steel/Aluminum |
| Length | Standard length |

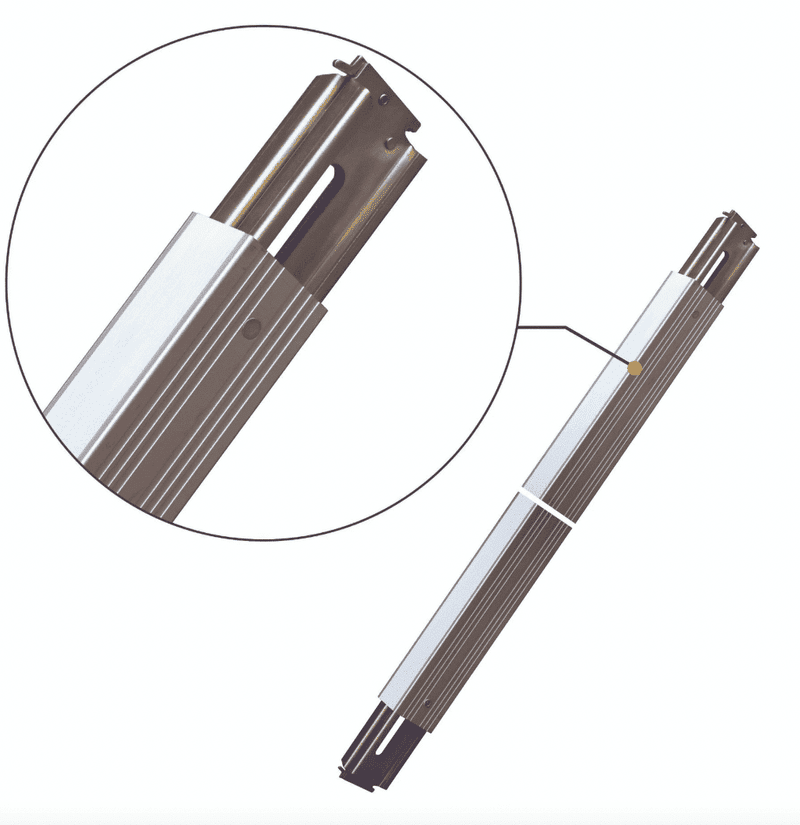

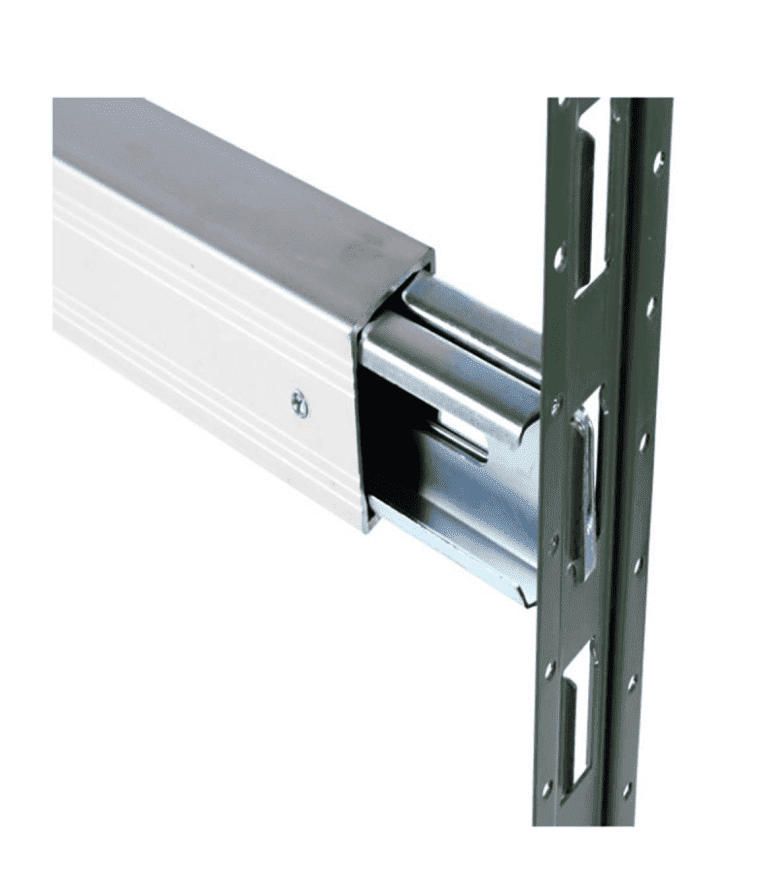

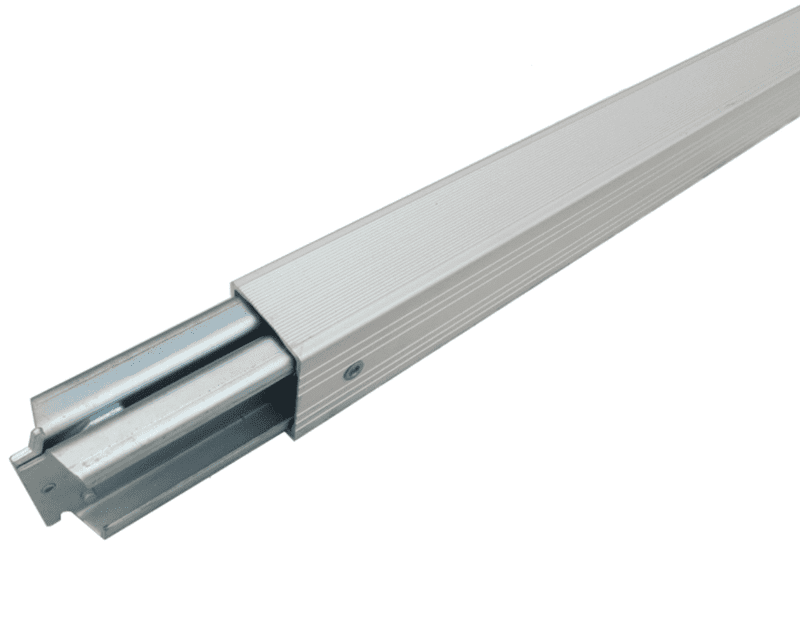

E-track decking beams, also known as shoring beams or load bars, are adjustable lock bars that secure items inside enclosed trailers and dry vans. They are installed inside trucks or trailers and attach to e-track rails, which are long pieces of steel with attachment points that can be screwed into the walls or floor of a trailer
| Item No. | Spec. /MM | Weight/KG | Head Size /mm | WBL /LB |
|---|---|---|---|---|
| LT-DB2185 | 2185-2463 | 11.14 | 317*72*55.5 /3.0 | 3000 |
| LT-DB2311 | 2311-2590 | 11.75 | ||
| LT-DB2324 | 2324-2616 | 11.82 |
| Item No. | Spec. /MM | Weight/KG | Head Size /mm | WBL /LB |
|---|---|---|---|---|
| ALT-DB2185 | 2185-2463 | 7.38 | 317*72*55.5 /3.0 | 2000 |
| ALT-DB2311 | 2311-2590 | 7.75 | ||
| ALT-DB2324 | 2324-2616 | 7.81 |
